Opti-Shield™ Liquid Paint Protection Film: What I Learned From Testing It Myself (and Why I’m Offering It to My Clients)
I didn’t test Opti-Shield because I needed another product to sell.
I tested Opti-Shield because I wanted answers
As a professional detailer here in Harford County, Maryland, I work on vehicles that see real use: daily commutes, highway driving, winter salt, pollen season, and everything in between. Over the years, I’ve seen what actually damages paint — and more importantly, what doesn’t.
Ceramic coatings are incredible for gloss, chemical resistance, and maintenance. I install them regularly and trust them. But I’ve also seen the same misconception over and over again:
“I have a ceramic coating, so my paint won’t scratch.”
That’s simply not how coatings work.
Opti-Shield caught my attention because it promised something different — real, measurable, sacrificial protection. Before offering it professionally, I wanted to understand it on my own terms. So I tested it. Layered it. Measured it. Scratched it. Sanded it. And finally, applied it to my own truck
This post is the result of that process
Why I Even Bothered Testing Opti-Shield
Most paint damage doesn’t come from keys or accidents. It comes from:
- Improper washing
- Dirty drying towels
- Road grit
- Winter brine
- Light abrasion over time
Factory clear coat is typically 40–60 microns thick. Once it’s worn down or scratched through, it’s permanent. Ceramic coatings, while incredibly durable chemically, are extremely thin — often measuring well under a micron.
Traditional paint protection film solves that with thickness, but seams, edges, cost, and partial coverage make it impractical for many drivers.
Opti-Shield lives in between those two worlds. I wanted to see if it actually filled that gap — or if it was just another buzzword.
How I Tested It (Quick Context, No Overthinking)
To understand Opti-Shield’s behavior, I tested it on a small metal panel using my paint thickness gauge. The panel did not have OEM clear coat, which means bonding behavior isn’t identical to painted panels — but thickness, abrasion behavior, and correction potential can still be observed clearly.
On my actual truck, I applied one layer of Opti-Shield, followed by different Opti-Coat ceramic coatings on various panels. I did not aggressively test or sand my own paint — because that wouldn’t reflect real ownership.
The test panel was for understanding limits.
The truck was for real-world use.
Measuring Thickness: The First Real Eye-Opener
The first thing I wanted to know was simple:
Does Opti-Shield actually build thickness — or does it just feel thick?
Layer by layer, I measured the film using a gauge. The results were consistent enough to be meaningful:
- Average thickness per layer: ~8 microns
That puts us at roughly:
- 1 layer → ~8 microns
- 2 layers → ~15–16 microns
- 4 layers → ~30+ microns (about 1 mil)
Out of curiosity, I kept layering on the test panel and eventually reached the equivalent of several mils of total thickness. That’s not something I’d ever recommend on a vehicle — but it confirmed something important:
👉 Opti-Shield builds true, measurable, sacrificial film thickness.
This isn’t theoretical protection. You can see it on a paint thickness gauge.
Scratch & Abrasion Testing: What Actually Happens
Light Abrasion & Wash-Type Contact
Using a nylon bristle detailing brush (both light and aggressive pressure):
- No noticeable scratching
- No visible marring
- The surface held up extremely well
This is huge, because most damage happens during washing and drying — especially in Maryland, where winter grit and seasonal debris get dragged across paint constantly.
Heavier Dirt & Aggressive Contact
When heavier dirt was pressed into the surface with aggressive pressure:
- Scratches occurred in the Opti-Shield layer
- The damage stayed within the film
- Nothing transferred to the substrate beneath
That’s the point of sacrificial protection.
The protection takes the hit — not the paint.
Malicious Damage: How It Fails Matters More Than If It Fails
I also tested deliberate, heavy pressure (a key scenario).
What I observed:
- Opti-Shield fractured or cracked under extreme force
- It did not smear or stretch
- Damage remained localized to the film
This is actually what you want. A product that’s too soft deforms. One that’s too hard transfers energy straight into the paint.
Opti-Shield sits in a smart middle ground:
Resistant to light abrasion, sacrificial under extreme damage.
Sanding & Correction: Putting Numbers Behind the Process
This was the most telling part of the testing.
With multiple layers applied, I sanded the Opti-Shield surface and tracked material removal — while keeping the number of passes consistent to make the data meaningful.
Here’s what that looked like:
- 20 passes with 1,000 grit → ~11 microns removed
- 20 passes with 2,000 grit → ~5 microns removed
- 30 passes with 3,000 grit → ~6 microns removed
Total removed: ~22 microns
The key takeaway isn’t just the numbers — it’s where that material came from.
👉 All of that correction happened within the Opti-Shield layer, not OEM clear coat.
That’s something ceramic coatings simply can’t offer. Once you polish through a coating, you’re immediately into permanent paint.

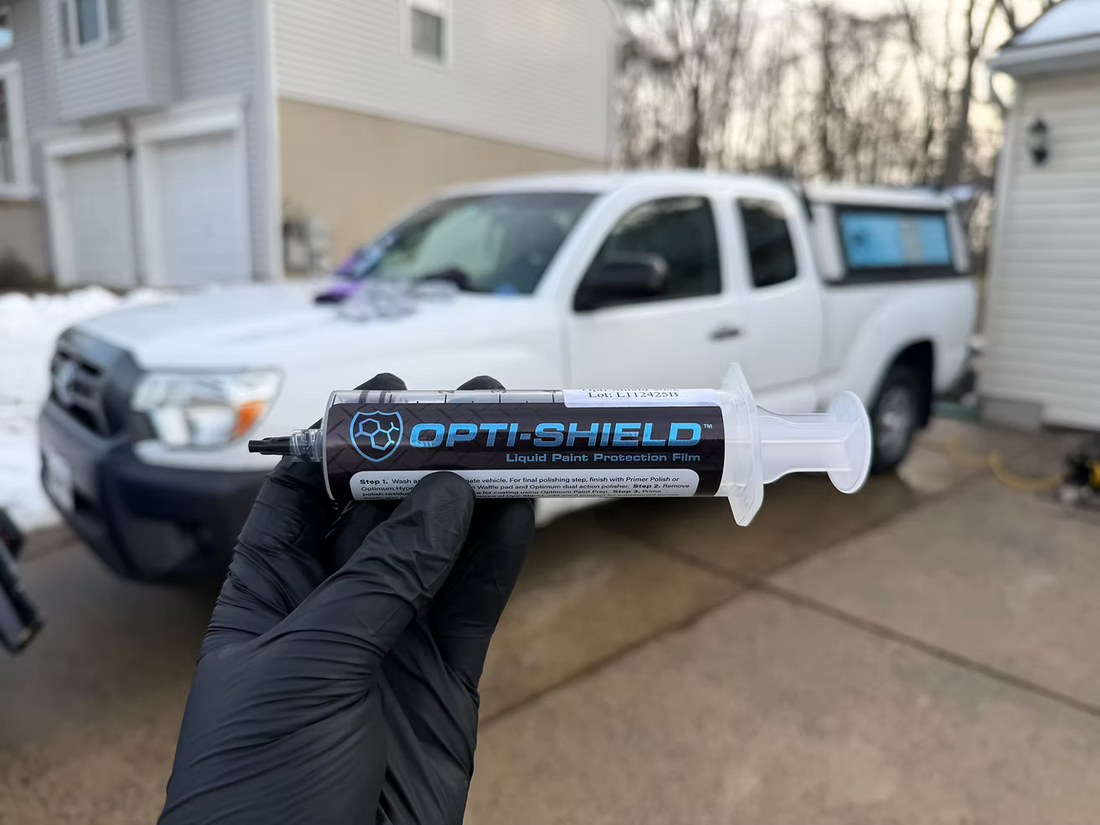

Applying Opti-Shield on My Own Truck
After testing, I applied one layer of Opti-Shield to my truck.
Installation notes (real-world, no fluff):
- Much tackier than ceramic
- Builds thickness quickly
- Requires patience and controlled leveling
- Definitely more physical than coating installs
After Opti-Shield, I applied different Opti-Coat ceramic coatings to various panels (Pro, Pro+, Pro3, and Ultra Shine) to observe compatibility.
What stood out:
- Coatings bonded effortlessly over Shield
- Water behavior was excellent
- The finish had depth even on imperfect paint
- Shield clearly behaves like a film, not a coating
How Opti-Shield and Opti-Coat Ceramic Coatings Work Together (This Is the Sweet Spot)
This is where things really come together.
Think of it as a layered protection system:
Opti-Shield (Physical Protection)
- Adds real thickness
- Absorbs scratches and abrasion
- Can be corrected and repaired
- Protects clear coat from wear
Opti-Coat Ceramic Coatings (Chemical Protection)
- UV resistance
- Chemical and environmental protection
- Hydrophobic behavior
- Easier maintenance and cleaning
When combined:
- Opti-Shield takes physical abuse
- Coating handles the environment
- Maintenance becomes easier
- Long-term paint preservation improves dramatically
Instead of choosing between “coating or PPF,” you get the strengths of both
What I Recommend for Most Maryland Drivers
Based on testing and real-world use:
1 Layer Opti-Shield
- 8+ microns of protection
- Great as a sacrificial buffer under a ceramic coating
2 Layers Opti-Shield (Sweet Spot)
- ~16 microns of protection
- Ideal for daily drivers
- Strong resistance to wash-induced marring
4 Layers Opti-Shield
- ~30+ microns
- High-impact areas
- Allows future sanding and correction
- Excellent alternative to partial PPF
6+ Layers Opti-Shield (Specialized Use)
- Front bumpers, highway vehicles, work trucks
Every vehicle is different — installation should be intentional, not cookie-cutter.
Final Thoughts (Why Opti-Shield Earned My Trust)
Opti-Shield didn’t impress me because it’s indestructible.
It impressed me because it behaves honestly:
- It resists light damage
- It sacrifices itself under heavier damage
- It builds real thickness
- It allows correction
- It protects what can’t be replaced
Clear coat is permanent.
Opti-Shield is not — and that’s the point.
Written By Jose Gomez
Originally Published At:
Jose Gomez is an Opti-Coat Ceramic Coating Installer and Owner of Crystal Worx Detailing since 2017. He offers auto detailing and Opti-Coat Pro Ceramic Coatings in Abingdon, MD
